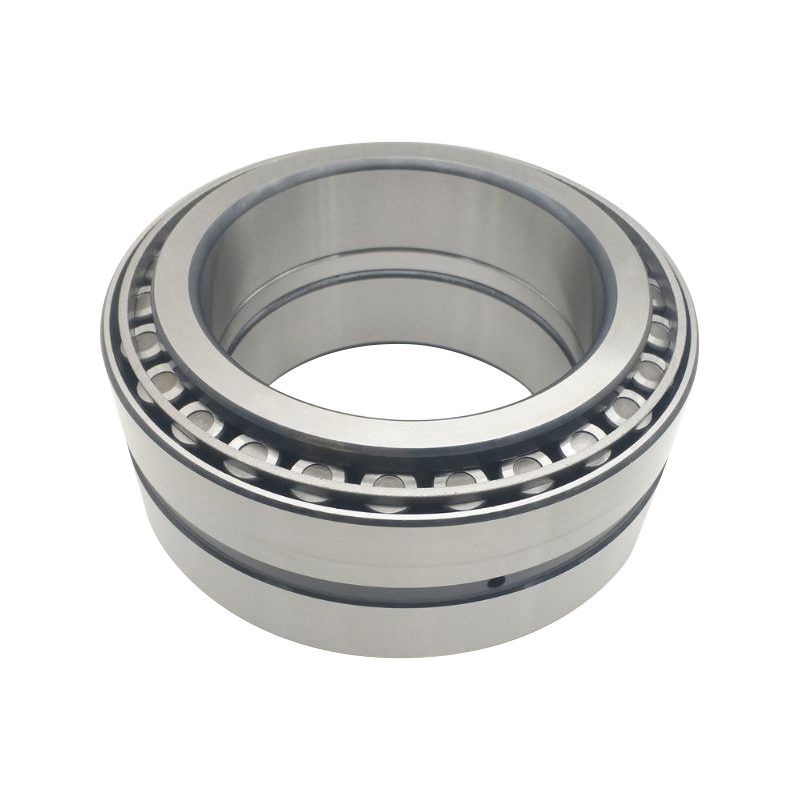

BT2B 332504/HA2 - Kegellagers met dubbele rij

Dubbelrijige kegellagers zijn een gespecialiseerd type lager dat is ontworpen om tegelijkertijd zware radiale en bidirectionele axiale belastingen te weerstaan. Ze bieden een oplossing met een hoge stijfheid en grote capaciteit voor toepassingen zoals versnellingsbakken, walserijen en tunnelboormachines. Vergeleken met lagers met één rij bieden ze superieure stijfheid, een langere levensduur en lagere wrijving.

Neem contact met ons op

VOORV：No previous product VOLGENDE：30202 Kegellager met enkele rij

Beschrijving
Specificaties
Neem contact met ons op

Belangrijkste kenmerken en voordelen
· Draagvermogen voor zware lasten: Ontworpen om hoge radiale en bidirectionele axiale belastingen te ondersteunen.
· Hoge stijfheid (stijfheid): Biedt een stijve lageropstelling, wat gunstig is voor precisietoepassingen.
· Axiale locatie/positionering: Plaatst de as axiaal in beide richtingen binnen een ingestelde axiale speling of onder voorspanning.
· Lange levensduur: Maakt gebruik van geoptimaliseerde loopbaanprofielen om de verdeling van de belasting te verbeteren, stress te verminderen en de slijtvastheid te verbeteren.
· Verminderde wrijving en geluid: Geoptimaliseerde ontwerpen van de roluiteinden en oppervlakteafwerkingen vergemakkelijken de vorming van een smeermiddelfilm, waardoor de wrijving wordt verminderd en het geluid en de trillingen kunnen worden verminderd.
·Betrouwbaarheid: Verhoogt de operationele betrouwbaarheid, zelfs onder moeilijke omstandigheden, en biedt een hogere gevoeligheid voor verkeerde uitlijning.

Toepassingsgebieden (Toepassingen)
·In de mijnbouw worden ze gebruikt voor hijs- en tunnelgraafapparatuur.
· Walserijen hebben ook een grote vraag naar kegellagers met dubbele rij.

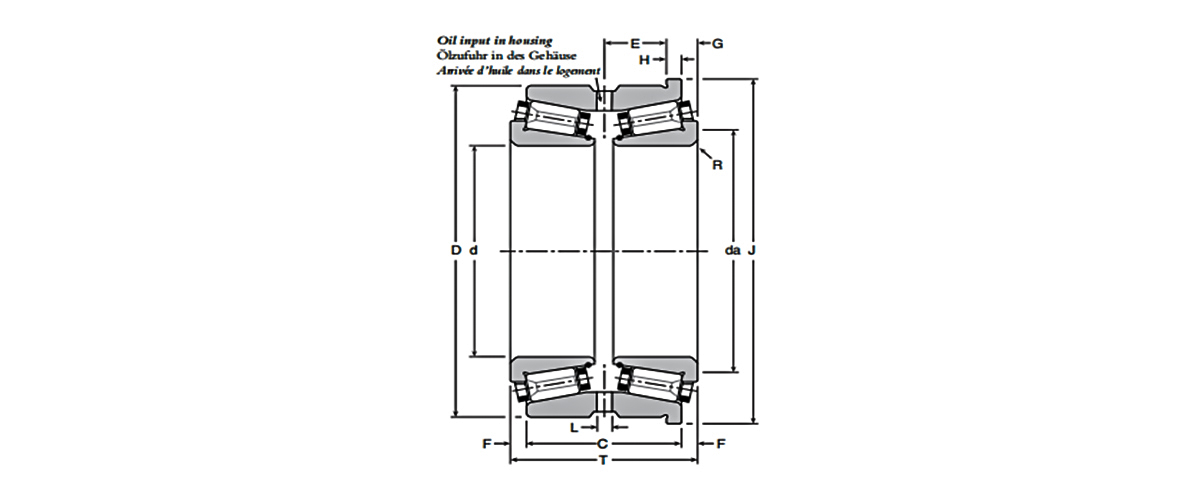

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					Dynamisch	Statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
228.6	488.95		152.4	254	2828.7	4050			205	331945 Lager
260	480		220	284	3897	6615			210	BT2B 328130 Lager
260.35	422.275		139.7	178.592	2016	3645			86.5	BT2B 328187/HA2-lager
300.038	422.275		136.525	174.625	1959.3	4275			71.5	BT2B 332504/HA2 lager
317.5	447.675		146.05	180.975	2268.9	4860			84	BT2B 332516 A/HA1-lager
333.375	469.9		152.4	190.5	2377.8	5130			98	331775 B-lager
340	460		128	160	1976.4	4410			71	BT2B 332830 Lager
346.075	488.95		158.75	200.025	2551.5	5670			110	331981 Lager
355.6	501.65		107.95	155.575	1778.4	3825			87	BT2B 332506/HA2 lager
360	480		128	160	1989.9	4500			73	BT2B 332831 Lager
368.249	523.875		169.862	214.312	3042	6750			140	BT2B 332603/HA1 Lager
371.475	501.65		107.95	155.575	1778.4	3825			77.4	331606 A Lager
384.175	546.1		177.8	222.25	3351.6	7470			161	331197 Een lager
400	540		135	170	2503.8	5670			106	BT2-8143/HA1 lager
406.4	539.75		101.6	142.875	1635.3	3960			82.4	BT2B 328389 Lager
415.925	590.55		193.675	244.475	3757.5	8685			205	331656 Lager
431.8	571.5		146.05	192.088	2562.3	6255			127	BT2B 332237 A/HA1-lager
431.8	571.5		111.125	155.575	1030.5	4590			100	BT2B 332604/HA1 Lager
447.675	635		206.375	257.175	3960	9900			245	BT2B 332176 A Lager
479.425	679.45		222.25	276.225	4509	11430			302	331657 Lager
498.475	634.873		142.875	177.8	2475	6615			125	331605 B-lager
501.65	711.2		231.775	292.1	4950	12330			343	BT2B 332605 A/HA1-lager
536.575	761.873		247.65	311.15	5643	14400			430	BT2B 332446 Lager
558.8	736.6		177.8	225.425	3861	10440			150	331640 A Lager
571.5	812.8		263.525	333.375	5796	14400			520	BT2B 332447 Lager
602.945	787.4		158.75	206.375	3618	9540			180	331576 B-lager
609.6	820		158.75	206.375	3618	9540			292	331500 Lager
711.2	914.4		139.7	190.5	3420	8685			265	BT2B 328028/HA1 lager
723.9	914.4		139.7	187.325	3420	8685			250	331554 A Lager
723.9	914.4		139.7	187.325	3420	8685			250	BT2B 331554 B/HA1-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
762	965.2		133.35	187.325	3222	8820			290	331780 A-lager
774.962	1016		209.63	266.7	6477.3	16200			525	BT2B 332625 Lager
914.4	1066.8		101.6	139.7	2340	7200			190	BT2B 332501/HA5 lager
1160	1540		290	400	12780	34200			1900	BT2B 332780/HA5-lager
1250	1500		190	250	6633	20160			795	BT2B 328339/HA4-lager
240	480	200		220	3253.5	4950			183	BT2B 332931 Lager
300	440	105		105	968.4	1836			48.5	332168 Lager
300.038	422.275	150.812		150.812	1959.3	4275			70	331951 Lager
303.212	495.3	263.525		263.525	4427.1	8820			212	BT2B 332685/HA1 Lager
305.033	560	200		200	1509.3	4770			200	332068 Lager
305.033	560	200		199.263	1509.3	4770			205	BT2B 334087/HA3 Lager
305.07	500	200		200	2460.6	4680			150	332169 Een lager
305.07	500	200		200	2460.6	4680			150	332169 AA-lager
305.07	524	200		200	2460.6	4680			180	BT2B 334110/HA3 Lager
317.5	422.275	128.588		128.588	1606.5	3735			51.5	BT2B 328699 G/HA1-lager
320	515	160		160	2142.9	3960			160	BT2-8017/HA3-lager
333.375	469.9	166.688		166.688	2377.8	5130			92.5	BT2B 328695 A/HA1-lager
342.9	533.4	146.05		139.7	1235.7	3960			115	331713 Een lager
346.075	488.95	174.625		174.625	2551.5	5670			110	331527 C-lager
346.075	488.95	174.625		174.625	2551.5	5670			113	BT2B 328410 C/HA1-lager
346.075	488.95	95.25		104.775	607.5	2475			62	BT2B 332913/HB1 lager
360	560	160		160	2300.4	4185			140	BT2-8000/HA3-lager
380	560	200		200	2691.9	5895			165	BT2-8009/HA3-lager
384.175	546.1	193.675		193.675	3351.6	7470			152	331158 A Lager
384.175	546.1	193.675		193.675	3351.6	7470			166	BT2B 328580/HA1 lager
384.175	546.1	193.675		193.675	3351.6	7470			152	BT2B 331837 Lager
385.762	514.35	152.4		152.4	2061	5400			92	BT2B 328035/HA1 lager
386	574	220		220	2670.3	5895			185	BT2-8010/HA3VA901 Lager
390	546.1	141.288		141.288	2105.1	4590			102	BT2B 328705/HA1 lager
390	570	200		200	2670.3	5895			170	BT2B 328896/HA3 lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
390	590	200		200	2670.3	5895			200	BT2B 328934/HA3 lager
390	548	180		180	2295	5265			155	BT2B 334045/HA3 lager
400	650	240		240	3519	7335			290	332167 Lager
400	650	240		240	3519	7335			305	BT2B 332167 C/HA3-lager
406.4	546.1	138.113		138.113	2105.1	4590			89	BT2B 331840 C/HA1-lager
406.4	546.1	138.113		138.113	1980	4590			89	BT2B 331840 G/HA1C150 Lager
406.4	546.1	164.275		164.275	1775.7	3825			135	BT2B 334085 A/HA1VA928 Lager
406.4	546.1	164.275		164.275	1775.7	3825			135	BT2B 334085/HA1VA901 Lager
408.4	546.1	125		150	1766.7	4275			99	BT2B 328466/HA1 Lager
408.4	546.1	98		120	1442.7	3105			76.5	BT2B 328874/HA1 Lager
415.925	590.55	209.55		209.55	3757.5	8685			192	331445 Lager
415.925	590.55	209.55		209.55	3757.5	8685			192	BT2B 328283/HA1 Lager
420	620	200		200	2673	6480			210	BT2-8016/HA3-lager
430	535	84		84	972	2700			44.5	BT2B 334013/HA1 Lager
445	620	160		160	1908	4590			135	BT2B 334069/HA3 lager
445	620	180		180	1908	4590			160	BT2B 334113/HA3VA901 Lager
447.675	635	223.838		223.838	3960	9900			236	331562 Lager
447.675	635	223.838		223.838	3960	9900			246	BT2B 332911 B/HB1-lager
447.675	635	223.838		223.838	3960	9900			246	BT2B 332911 C/HA1-lager
450	595	178		178	2852.1	7335			140	BT2B 328523/HA1 Lager
460	680	180		180	2826	6255			210	BT2B 328876/HA1 Lager
460	680	180		180	2826	6255			250	BT2B 334030/HA1 lager
464	615	136		150	1944	5265			133	BT2-8215 Lager
482	640	160		160	1584	4680			145	BT2B 334112/HA3 lager
482.6	733.425	190		190	2574	7470			293	BT2-8142/HA3-lager
489.026	634.873	152.4		152.4	2475	6615			130	BT2B 331848 Lager
500	730	280		280	5940	14040			420	331676 A Lager
501.65	711.2	250.825		250.825	4950	12330			330	331182 Lager
501.65	711.2	250.825		250.825	4950	12330			330	331182 A Lager
519.113	736.6	258.762		258.762	5445	14040			370	BT2B 332662 B/HB1-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
519.113	736.6	258.762		258.762	5445	14040			370	BT2B 332662/HB1 lager
536.575	761.873	269.875		269.875	5643	14400			410	331682 Lager
558.8	736.6	196.85		196.85	3861	10440			235	331607 B-lager
560	820	242		242	4509	10260			425	BT2B 332626/HA7 lager
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331476 AG/HA1-lager
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331854 C/HA1-lager
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331854/HA1 Lager
580	830	280		280	6138	14940			515	331677 Lager
609.6	787.4	171.45		171.45	3618	9540			218	BT2B 331858/HA1 Lager
609.6	820	171.45		171.45	3618	9540			265	BT2B 332424/HA3 lager
635	939.8	304.8		304.8	6039	14940			720	331555 B-lager
650	1030	270		270	7920	16470			900	BT2B 328306/HA4 lager
660.4	812.8	176.212		176.212	3222	10080			195	331198 Lager
690	980	355		355	9204.3	22500			890	BT2-8164/HA4-lager
800	1260	375		375	13230	30150			1850	BT2B 334032/HA4 lager
901.7	1295.4	438.15		450.85	15120	38700			2000	331306 Lager
939.8	1333.5	463.55		463.55	15840	44100			2230	331350 Lager
110	180		76	95	400	730			8.63	352122 Lager
120	200		90	110	508	910			11.7	352124 Lager
130	200		80	102	450	800			9.72	352026 Lager
130	210		90	110	540	1000			13.5	352126 Lager
140	210		82	104	480	830			10.9	352028 Lager
140	225		90	115	560	1100			15.5	352128 Lager
150	225		86	110	500	900			14.5	352030 Lager
150	250		112	138	778	1560			25.8	352130 Lager
160	240		90	116	700	1300			16.5	352032 Lager
160	270		120	150	990	2160			34.9	352132 Lager
170	260		100	128	830	1800			21	352034 Lager
170	280		120	150	1100	2400			35.6	352134 Lager
180	280		110	142	1005	2340			27.9	352036 Lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
180	300		134	164	1290	2500			43.2	352136 Lager
190	290		110	142	1005	2340			28.8	352038 Lager
190	320		130	170	1160	2410			50.4	352138 Lager
200	310		120	154	1500	2900			41.9	352040 Lager
200	340		150	184	1600	3300			61.5	352140 Lager
220	340		128	166	1210	2500			42.7	352044 Lager
220	370		150	195	1700	3200			76.3	352144 Lager
240	360		128	166	1430	3200			52.8	352048 Lager
240	400		163	210	2000	4100			98.1	352148 Lager
260	400		146	190	1530	3630			75.6	352052 Lager
260	440		180	225	2200	4600			126	352152 Lager
280	420		146	190	1820	4050			81.3	352056 Lager
300	460		168	220	2200	5300			117	352060 Lager
25	52	19	36.5	39.75				13300	0.34	74025/74052PT Lager
30	62	23	42.5	46.75				11600	0.535	70030/70062PT Lager
30	66.675	23.5	42.48	47.24				10400	0.63	80030/80066XPT-lager
30	68	23.5	42.48	47.24				10400	0.63	80030/80068PT Lager
31.75	72	26	46.5	51.75				9600	0.75	100031X/100072PT Lager
31.75	76.2	26	46.5	51.75				9600	0.75	100031X/100076XPT-lager
31.75	80	26	46.5	51.75				9600	0.75	100031X/100080PT lager
33.338	66.675	23.5	42.48	47.24				10400	0.63	80033X/80066XPT-lager
33.338	68	23.5	42.48	47.24				10400	0.63	80033X/80068PT Lager
34.925	72	26	46.5	51.75				9600	0.75	100034X/100072PT Lager
34.925	76.2	26	46.5	51.75				9600	0.75	100034X/100076XPT-lager
34.925	80	26	46.5	51.75				9600	0.75	100034X/100080PT lager
35	66.675	23.5	42.48	47.24				10400	0.6	80035/80066XPT-lager
35	68	23.5	42.48	47.24				10400	0.63	80035/80068PT Lager
35	72	26	46.5	51.75				9600	0.75	100035/100072PT Lager
35	76.2	26	46.5	51.75				9600	0.75	100035/100076XPT-lager
35	80	26	46.5	51.75				9600	0.75	100035/100080PT Lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
38.1	76	26	45.5	51.25				8800	0.92	101038X/101076PT Lager
38.1	76.2	26	45.5	51.25				8800	0.92	101038X/101076XPT-lager
38.1	80	26	45.5	51.25				8800	0.92	101038X/101080PT Lager
40	76.2	26	45.5	51.25				8800	0.92	101040/101076XPT-lager
40	80	26	45.5	51.25				8800	0.915	101040/101080PT Lager
40	85	24.5	48.66	51.83				8200	1.025	112040/112085PT Lager
41.275	76	26	45.5	51.25				8800	0.92	101041X/101076PT Lager
41.275	76.2	26	45.5	51.25				8800	0.92	101041X/101076XPT-lager
41.275	80	26	45.5	51.25				8800	0.92	101041X/101080PT Lager
41.275	85	24.5	48.66	51.83				8200	1.03	112041X/112085PT Lager
44.45	85	24.5	48.66	51.83				8200	1.03	112044X/112085PT Lager
44.45	85	28	55.66	58.83				8200	1.07	119044X/119085PT Lager
44.45	88.9	28	55.66	58.83				8200	1.07	119044X/119088XPT-lager
44.45	90	29	51.3	57.65				7400	1.17	111044X/111090PT Lager
44.45	93.266	29	51.3	57.65				7400	1.17	111044X/111093XPT-lager
45	85	24.5	48.66	51.83				8200	0.965	112045/112085PT Lager
45	85	28	55.66	58.83				8200	1.07	119045/119085PT Lager
45	88.9	28	55.66	58.83				8200	1.07	119045/119088XPT-lager
50	90	29	51.3	57.65				7400	1.17	111050/111090PT Lager
50	93.266	29	51.3	57.65				7400	1.17	111050/111093XPT-lager
50	96.838	29.5	54	59.5				6900	1.63	110050/110096XPT-lager
50	98.425	29.5	54	59.5				6900	1.63	110050/110098XPT-lager
50	100	29.5	54	59.5				6900	1.63	110050/110100PT Lager
50.8	90	29	51.3	57.65				7400	1.17	111050X/111090PT Lager
50.8	96.838	29.5	54	59.5				6900	1.63	110050X/110096XPT-lager
50.8	98.425	29.5	54	59.5				6900	1.63	110050X/110098XPT-lager
50.8	100	29.5	54	59.5				6900	1.63	110050X/110100PT lager
53.975	96.838	29.5	54	59.5				6900	1.63	110053X/110096XPT-lager
53.975	98.425	29.5	54	59.5				6900	1.63	110053X/110098XPT-lager
53.975	100	29.5	54	59.5				6900	1.63	110053X/110100PT Lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
55	96.838	29.5	54	59.5				6900	1.63	110055/110096XPT-lager
55	98.425	29.5	54	59.5				6900	1.63	110055/110098XPT-lager
55	100	29.5	54	59.5				6900	1.54	110055/110100PT Lager
57.15	96.838	29.5	54	59.5				6900	1.63	110057X/110096XPT-lager
57.15	98.425	29.5	54	59.5				6900	1.63	110057X/110098XPT-lager
57.15	100	29.5	54	59.5				6900	1.63	110057X/110100PT Lager
57.15	100	26.5	46.88	52.44				6600	1.38	113057X/113100PT Lager
57.15	101.6	26.5	46.88	52.44				6600	1.38	113057X/113101XPT-lager
57.15	110	33	60.3	66.65				6200	2.03	120057X/120110PT Lager
57.15	112.712	33	60.3	66.65				6200	2.03	120057X/120112XPT-lager
60	100	26.5	46.88	52.44				6600	1.38	113060/113100PT Lager
60	101.6	26.5	46.88	52.44				6600	1.38	113060/113101XPT-lager
60	110	33	60.3	66.65				6200	2.03	120060/120110PT Lager
60	112.712	33	60.3	66.65				6200	2.03	120060/120112XPT-lager
60	120	32	59.88	65.44				5700	2.45	130060/130120PT Lager
60	127	32	59.88	65.44				5700	2.45	130060/130127PT Lager
60.325	100	26.5	46.88	52.44				6600	1.38	113060X/113100PT lager
60.325	101.6	26.5	46.88	52.44				6600	1.38	113060X/113101XPT-lager
63.5	110	33	60.3	66.65				6200	1.94	120063X/120110PT Lager
63.5	120	32	59.88	65.44				5700	2.45	130063X/130120PT Lager
63.5	127	32	59.88	65.44				5700	2.45	130063X/130127PT Lager
65	120	32	59.88	65.44				5700	2.45	130065/130120PT Lager
65	127	32	59.88	65.44				5700	2.45	130065/130127PT Lager
69.85	112.712	33	60.3	66.65				5800	1.83	124069X/124112XPT-lager
69.85	120	32	59.88	65.44				5700	2.32	130069X/130120PT Lager
69.85	120	42	73.12	81.06				5700	3.05	135069X/135120PT Lager
69.85	127	32	59.88	65.44				5700	2.45	130069X/130127PT Lager
70	112.712	33	60.3	66.65				5800	1.83	124070/124112XPT-lager
70	120	32	59.88	65.44				5700	2.32	130070/130120PT Lager
70	127	32	59.88	65.44				5700	2.45	130070/130127PT Lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
75	127	33.5	60.5	66.75				5300	2.79	133075/133127PT Lager
75	130	33.5	60.5	66.75				5300	2.79	133075/133130PT Lager
75	133.35	33.5	60.5	66.75				5300	2.79	133075/133133XPT-lager
75	136.525	33.5	60.5	66.75				5300	2.79	133075/133136XPT-lager
76.2	127	33.5	60.5	66.75				5300	2.79	133076X/133127PT Lager
76.2	130	33.5	60.5	66.75				5300	2.79	133076X/133130PT Lager
76.2	133.35	33.5	60.5	66.75				5300	2.79	133076X/133133XPT-lager
76.2	136.525	33.5	60.5	66.75				5300	2.79	133076X/133136XPT-lager
80	140	38.5	69.14	77.07				4900	3.78	140080/140140PT Lager
82.55	140	38.5	69.14	77.07				4900	3.68	140082X/140140PT Lager
85	140	38.5	69.14	77.07				4900	3.58	140085/140140PT Lager
85	170	50.5	89	97.5				4200	7.34	210085/210170PT Lager
90	133.35	34	60.12	68.06				4800	2.82	117090/117133XPT-lager
90	150	33.75	62	68.5				4400	3.8	131090/131150PT Lager
90	152.4	33.75	62	68.5				4400	3.8	131090/131152XPT-lager
90	152.4	42	78.5	83.9				4300	4.3	160090/160152XPT-lager
90	158.75	33.75	62	68.5				4400	3.8	131090/131158XPT-lager
90	158.75	42	78.5	83.9				4300	4.3	160090/160158XPT-lager
90	160	42	78.5	83.9				4300	4.3	160090/160160PT Lager
90	161.925	42	78.5	83.9				4300	4.3	160090/160161XPT-lager
90	170	50.5	89	97.5				4200	7.34	210090/210170PT Lager
92.075	150	33.75	62	68.5				4400	3.8	131092X/131150PT Lager
92.075	152.4	33.75	62	68.5				4400	3.8	131092X/131152XPT-lager
92.075	158.75	33.75	62	68.5				4400	3.8	131092X/131158XPT-lager
93.663	150	33.75	62	68.5				4400	3.8	131093X/131150PT Lager
93.663	152.4	33.75	62	68.5				4400	3.8	131093X/131152XPT-lager
93.663	158.75	33.75	62	68.5				4400	3.8	131093X/131158XPT-lager
95	150	33.75	62	68.5				4400	3.8	131095/131150PT Lager
95	152.4	33.75	62	68.5				4400	3.74	131095/131152XPT-lager
95	152.4	42	75.8	83.9				4300	4.5	160095/160152XPT-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
95	158.75	33.75	62	68.5				4400	3.8	131095/131158XPT-lager
95	170	50.5	89	97.5				4200	7.34	210095/210170PT Lager
97	150	33.75	62	68.5				4400	3.8	131097/131150PT Lager
97	152.4	33.75	62	68.5				4400	3.66	131097/131152XPT-lager
97	158.75	33.75	62	68.5				4400	3.8	131097/131158XPT-lager
98.425	152.4	42	75.8	83.9				4300	4.3	160098X/160152XPT-lager
98.425	158.75	42	78.5	83.9				4300	4.3	160098X/160158XPT-lager
98.425	160	42	78.5	83.9				4300	4.3	160098X/160160PT Lager
98.425	161.925	42	78.5	83.9				4300	4.3	160098X/160161XPT-lager
100	170	46	84	92				3900	7.67	180100/180170PT Lager
100	180	46	84	92				3900	7.67	180100/180180PT Lager
100	180.975	46	84	92				3900	7.67	180100/180180XPT-lager
100	190	46	84	92				3900	9.58	180100/180190PT Lager
101.6	165.1	39.5	63.51	73.03				3900	5.68	141101X/141165XPT-lager
101.6	170	46	84	92				3900	7.67	180101X/180170PT lager
101.6	180	46	84	92				3900	7.67	180101X/180180PT Lager
101.6	180.975	46	84	92				3900	7.81	180101X/180180XPT-lager
101.6	190	46	84	92				3900	9.56	180101X/180190PT Lager
105	170	46	84	92				3900	7.67	180105/180170PT Lager
105	180	46	84	92				3900	7.67	180105/180180PT Lager
105	180.975	46	84	92				3900	7.58	180105/180180XPT-lager
105	190	46	84	92				3900	9.38	180105/180190PT Lager
107.95	165.1	39.5	63.51	73.03				3900	5.68	141107X/141165XPT-lager
111.125	180.975	50	82.6	95.3				3600	7.03	181111X/181180XPT-lager
111.125	190	50	82.6	95.3				3600	8.68	181111X/181190PT Lager
111.125	190.5	50	82.6	95.3				3600	8.78	181111X/181190XPT-lager
111.125	200.025	50	82.6	95.3				3600	8.68	181111X/181200XPT-lager
115	165	31	55	60				3900	2.85	105115/105165PT Lager
115	180.975	50	82.6	95.3				3600	6.78	181115/181180XPT-lager
115	190	50	82.6	95.3				3600	8.43	181115/181190PT Lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
115	190.5	50	82.6	95.3				3600	8.53	181115/181190XPT-lager
115	200.025	50	82.6	95.3				3600	8.68	181115/181200XPT-lager
118	180.975	50	82.6	95.3				3600	6.57	181118/181180XPT-lager
118	190	50	82.6	95.3				3600	8.13	181118/181190PT Lager
118	190.5	50	82.6	95.3				3600	8.23	181118/181190XPT-lager
118	200.025	50	82.6	95.3				3600	8.68	181118/181200XPT-lager
120	165	31	55	60				3900	2.85	105120/105165PT Lager
120	190	50	82.6	95.3				3500	7.45	184120/184190PT Lager
120	190.5	5	82.6	95.3				3500	7.45	184120/184190XPT-lager
120	199	5	82.6	95.3				3500	7.45	184120/184199PT Lager
120	200	5	82.6	95.3				3500	7.45	184120/184200PT Lager
127	175	31	55	60				3900	2.85	109127X/109175PT Lager
127	196.85	42	85.74	93.67				3400	7.42	164127X/164196XPT-lager
127	200.025	42	85.74	93.67				3400	7.42	164127X/164200XPT-lager
127	215	51	92	101				3100	11.05	200127X/200215PT Lager
127	215.9	51	92	101				3100	11.05	200127X/200215XPT-lager
133.35	196.85	42	85.74	93.67				3400	7.42	164133X/164196XPT-lager
133.35	200.025	42	85.74	93.67				3400	7.42	164133X/164200XPT-lager
133.35	215	51	92	101				3100	11.05	200133X/200215PT Lager
133.35	215.9	51	92	101				3100	10.55	200133X/200215XPT-lager
136.525	215	51	92	101				3100	11.05	200136X/200215PT Lager
136.525	215.9	51	92	101				3100	10.25	200136X/200215XPT-lager
139.7	215	51	92	101				3100	11.05	200139X/200215PT Lager
139.7	215.9	51	92	101				3100	11.05	200139X/200215XPT-lager
139.7	241.3	59	104	115				2900	17.7	240139X/240241XPT-lager
140	200	42	73	80.15				3100	6.38	161140/161200PT Lager
140	200.025	42	73	80.15				3100	6.38	161140/161200XPT-lager
142.875	200	42	73	80.15				3100	6.38	161142X/161200PT lager
142.875	200.025	42	73	80.15				3100	6.38	161142X/161200XPT-lager
145	241.3	59	104	115				2900	17.15	240145/240241XPT-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
145	256	51	92	101				2700	11.83	203145/203256PT Lager
149.225	241.3	59	104	115				2900	17.15	240149X/240241XPT-lager
150	210	42	76	84				3000	9.1	163150/163210PT Lager
152.4	222.25	49	81.2	93.1				3000	9.08	183152X/183222XPT-lager
152.4	254	74	116.9	135.95				2600	21.72	281152X/281254XPT-lager
152.4	266.7	74	116.9	135.95				2600	21.72	281152X/281266XPT-lager
155.575	254	74	116.9	135.95				2600	21.72	281155X/281254XPT-lager
155.575	266.7	74	116.9	135.95				2600	21.72	281155X/281266XPT-lager
156	235	51	92	101				2700	11.83	203156/203235PT Lager
165.1	254	50	88.96	98.48				2600	12.7	186165X/186254XPT-lager
170	254	50	88.96	98.48				2600	12.7	186170/186254XPT-lager
177.8	227.013	35	63.48	69.24				2700	5.07	115177X/115227XPT-lager
177.8	254	50	88.96	98.48				2600	12.7	186177X/186254XPT-lager
177.8	288.925	71	122.25	138.12				2300	27.2	280177X/280288XPT-lager
185	258	50	90	100				2500	12	187185/187258PT Lager
190.5	282.575	54	91.42	105.71				2300	14.1	242190X/242282XPT-lager
190.5	290	52	96	105				2200	14.2	206190X/206290PT lager
203.2	310	72	121.08	138.54				2100	25	283203X/283310PT Lager
203.2	317.5	72	121.08	138.54				2100	25	283203X/283317XPT-lager
210	290	52	96	105				2200	13.1	206210/206290PT Lager
210	310	72	121.08	138.54				2100	25	283210/283310PT Lager
210	317.5	72	121.08	138.54				2100	25	283210/283317XPT-lager
230	327.025	55	90.24	106.12				1900	21	244230/244327XPT-lager
230	330	55	90.24	106.12				1900	21	244230X/244330PT Lager
234.95	327.025	55	90.24	106.12				1900	21	244234X/244327XPT-lager
234.95	330	55	90.24	106.12				1900	21	244234X/244330PT Lager
260	385	66	114.34	130.12				1700	32	382260/382385PT Lager
25	52		36.5	43				13300	0.46	74025/74052GUD-lager
30	62		42.5	51				11600	0.64	70030/70062GUD-lager
30	66.675		42.48	52				10400	0.78	80030/80066XGUD-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
30	68		42.48	52				10400	0.78	80030/80068GUD-lager
32	72		46.5	57				9600	0.825	100031X/100072GUD-lager
32	76.2		46.5	57				9600	0.825	100031X/100076XGUD-lager
32	80		46.5	57				9600	0.825	100031X/100080GUD-lager
33	66.675		42.48	52				10400	0.78	80033X/80066XGUD-lager
33	68		42.48	52				10400	0.78	80033X/80068GUD-lager
35	72		46.5	57				9600	0.825	100034X/100072GUD-lager
35	76.2		46.5	57				9600	0.825	100034X/100076XGUD-lager
35	80		46.5	57				9600	0.825	100034X/100080GUD-lager
35	66.675		42.48	52				10400	0.72	80035/80066XGUD-lager
35	68		42.48	52				10400	0.75	80035/80068GUD-lager
35	72		46.5	57				9600	0.825	100035/100072GUD-lager
35	76.2		46.5	57				9600	0.825	100035/100076XGUD-lager
35	80		46.5	57				9600	0.825	100035/100080GUD-lager
36	72		36.5	42				9600	0.58	102036/102072GUD-lager
38	76		45.5	57				8800	0.85	101038X/101076GUD-lager
38	76.2		45.5	57				8800	0.85	101038X/101076XGUD-lager
38	80		45.5	57				8800	0.85	101038X/101080GUD-lager
40	76		45.5	57				8800	0.85	101040/101076GUD-lager
40	76.2		45.5	57				8800	0.85	101040/101076XGUD-lager
40	80		45.5	57				8800	1.025	101040/101080GUD-lager
40	85		48.66	55				8200	1.19	112040/112085GUD-lager
41	76		45.5	57				8800	0.85	101041X/101076GUD-lager
41	76.2		45.5	57				8800	0.85	101041X/101076XGUD-lager
41	80		45.5	57				8800	0.85	101041X/101080GUD-lager
41	85		48.66	55				8200	1.07	112041X/112085GUD-lager
44	90		51.3	64				7400	1.33	111044X/111090GUD-lager
44	93.266		51.3	64				7400	1.33	111044X/111093XGUD-lager
44	85		48.66	55				8200	1.07	112044X/112085GUD-lager
44	85		55.66	62				8200	1.17	119044X/119085GUD-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
44	88.9		55.66	62				8200	1.17	119044X/119088XGUD-lager
45	85		48.66	55				8200	1.07	112045/112085GUD-lager
45	85		55.66	62				8200	1.17	119045/119085GUD-lager
45	88.9		55.66	62				8200	1.17	119045/119088XGUD-lager
50	90		51.3	64				7400	1.33	111050/111090GUD-lager
50	93.266		51.3	64				7400	1.33	111050/111093XGUD-lager
50	96.838		54	65				6900	1.945	110050/110096XGUD-lager
50	98.425		54	65				6900	1.945	110050/110098XGUD-lager
50	100		54	65				6900	1.945	110050/110100GUD-lager
51	90		51.3	64				7400	1.33	111050X/111090GUD-lager
51	96.838		54	65				6900	1.945	110050X/110096XGUD-lager
51	98.425		54	65				6900	1.945	110050X/110098XGUD-lager
51	100		54	65				6900	1.945	110050X/110100GUD-lager
54	96.838		54	65				6900	1.945	110053X/110096XGUD-lager
54	98.425		54	65				6900	1.945	110053X/110098XGUD-lager
54	100		54	65				6900	1.945	110053X/110100GUD-lager
55	96.838		54	65				6900	1.945	110055/110096XGUD-lager
55	98.425		54	65				6900	1.945	110055/110098XGUD-lager
55	100		54	65				6900	1.765	110055/110100GUD-lager
57	96.838		54	65				6900	1.945	110057X/110096XGUD-lager
57	98.425		54	65				6900	1.945	110057X/110098XGUD-lager
57	100		54	65				6900	1.945	110057X/110100GUD-lager
57	100		46.88	58				6600	1.825	113057X/113100GUD-lager
57	101.6		46.88	58				6600	1.825	113057X/113101XGUD-lager
57	110		60.3	73				6200	2.39	120057X/120110GUD-lager
57	112.712		60.3	73				6200	2.39	120057X/120112XGUD-lager
60	100		46.88	58				6600	1.825	113060/113100GUD-lager
60	101.6		46.88	58				6600	1.825	113060/113101XGUD-lager
60	110		60.3	73				6200	2.39	120060/120110GUD-lager
60	112.712		60.3	73				6200	2.39	120060/120112XGUD-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
60	120		59.88	71				5700	2.86	130060/130120GUD-lager
60	127		59.88	71				5700	2.86	130060/130127GUD-lager
60	100		46.88	58				6600	1.825	113060X/113100GUD-lager
60	101.6		46.88	58				6600	1.825	113060X/113101XGUD-lager
64	110		60.3	73				6200	2.21	120063X/120110GUD-lager
64	120		59.88	71				5700	2.86	130063X/130120GUD-lager
64	127		59.88	71				5700	2.86	130063X/130127GUD-lager
65	120		59.88	71				5700	2.86	130065/130120GUD-lager
65	127		59.88	71				5700	2.86	130065/130127GUD-lager
70	112.712		60.3	73				5800	2.015	124069X/124112XGUD-lager
70	120		59.88	71				5700	2.61	130069X/130120GUD-lager
70	120		73.12	89				5700	2.73	135069X/135120GUD-lager
70	127		59.88	71				5700	2.86	130069X/130127GUD-lager
70	112.712		60.3	73				5800	2.015	124070/124112XGUD-lager
70	120		59.88	71				5700	2.64	130070/130120GUD-lager
70	127		59.88	71				5700	2.86	130070/130127GUD-lager
73	120		49.7	64				5500	2.35	123073X/123120GUD-lager
73	120.65		49.7	64				5500	2.35	123073X/123120XGUD-lager
73	121.444		49.7	64				5500	2.35	123073X/123121XGUD-lager
73	123.825		49.7	64				5500	2.35	123073X/123123XGUD-lager
75	120		49.7	64				5500	2.25	123075/123120GUD-lager
75	120.65		49.7	64				5500	2.25	123075/123120XGUD-lager
75	121.444		49.7	64				5500	2.25	123075/123121XGUD-lager
75	123.825		49.7	64				5500	2.25	123075/123123XGUD-lager
75	127		60.5	73				5300	3.23	133075/133127GUD-lager
75	130		60.5	73				5300	3.23	133075/133130GUD-lager
75	133.35		60.5	73				5300	3.23	133075/133133XGUD-lager
75	136.525		60.5	73				5300	3.23	133075/133136XGUD-lager
76	120		49.7	64				5500	2.25	123076X/123120GUD-lager
76	120.65		49.7	64				5500	2.25	123076X/123120XGUD-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
76	123.825		49.7	64				5500	2.25	123076X/123123XGUD-lager
76	127		60.5	73				5300	3.23	133076X/133127GUD-lager
76	130		60.5	73				5300	3.23	133076X/133130GUD-lager
76	133.35		60.5	73				5300	3.23	133076X/133133XGUD-lager
76	136.525		60.5	73				5300	3.23	133076X/133136XGUD-lager
78	120		49.7	64				5500	2.25	123077X/123120GUD-lager
78	120.65		49.7	64				5500	2.25	123077X/123120XGUD-lager
78	121.444		49.7	64				5500	2.25	123077X/123121XGUD-lager
78	123.825		49.7	64				5500	2.25	123077X/123123XGUD-lager
80	140		69.14	85				4900	4.345	140080/140140GUD-lager
81	133.35		58.12	74				4900	2.25	126080X/126133XGUD-lager
83	133.35		58.12	74				4900	2.25	126082X/126133XGUD-lager
83	136.525		58.12	74				4900	2.25	126082X/126136XGUD-lager
83	140		69.14	85				4900	4.145	140082X/140140GUD-lager
84	133.35		58.12	74				4900	2.4	126084X/126133XGUD-lager
84	136.525		58.12	74				4900	2.4	126084X/126136XGUD-lager
85	140		69.14	85				4900	3.945	140085/140140GUD-lager
85	170		89	106				4200	8.345	210085/210170GUD-lager
86	133.35		58.12	74				4900	2.4	126085X/126133XGUD-lager
86	136.525		58.12	74				4900	2.4	126085X/126136XGUD-lager
89	133.35		58.12	74				4900	2.4	126088X/126133XGUD-lager
89	136.525		58.12	74				4900	2.4	126088X/126136XGUD-lager
90	133.35		60.12	76				4800	3.9	117090/117133XGUD-lager
90	170		89	106				4200	8.345	210090/210170GUD-lager
90	150		62	75				4400	4.625	131090/131150GUD-lager
90	152.4		62	75				4400	4.625	131090/131152XGUD-lager
90	158.75		62	75				4400	4.625	131090/131158XGUD-lager
90	152.4		75.8	92				4300	4.95	160090/160152XGUD-lager
90	158.75		75.8	92				4300	4.95	160090/160158XGUD-lager
90	160		75.8	92				4300	4.95	160090/160160GUD-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
90	161.925		75.8	92				4300	4.95	160090/160161XGUD-lager
92	150		62	75				4400	4.625	131092X/131150GUD-lager
92	152.4		62	75				4400	4.625	131092X/131152XGUD-lager
92	158.75		62	75				4400	4.625	131092X/131158XGUD-lager
94	152.4		62	75				4400	4.625	131093X/131152XGUD-lager
94	150		62	75				4400	4.625	131093X/131150GUD-lager
94	158.75		62	75				4400	4.625	131093X/131158XGUD-lager
95	150		62	75				4400	4.625	131095/131150GUD-lager
95	152.4		62	75				4400	4.505	131095/131152XGUD-lager
95	158.75		62	75				4400	4.625	131095/131158XGUD-lager
95	170		89	106				4200	8.345	210095/210170GUD-lager
97	152.4		62	75				4400	4.345	131097/131152XGUD-lager
97	150		62	75				4400	4.625	131097/131150GUD-lager
97	158.75		62	75				4400	4.625	131097/131158XGUD-lager
98	152.4		75.8	92				4300	4.95	160098X/160152XGUD-lager
98	158.75		75.8	92				4300	4.95	160098X/160158XGUD-lager
98	160		75.8	92				4300	4.95	160098X/160160GUD-lager
98	161.925		75.8	92				4300	4.95	160098X/160161XGUD-lager
100	170		84	100				3900	11	180100/180170GUD-lager
100	180		84	100				3900	9.1	180100/180180GUD-lager
100	180.975		84	100				3900	11	180100/180180XGUD-lager
100	190		84	100				3900	11	180100/180190GUD-lager
102	165.1		67.96	87				3900	9.16	141101X/141165XGUD-lager
102	170		84	100				3900	11	180101X/180170GUD-lager
102	180		84	100				3900	11	180101X/180180GUD-lager
102	180.975		84	100				3900	9.28	180101X/180180XGUD-lager
102	190		84	100				3900	10.96	180101X/180190GUD-lager
105	170		84	100				3900	11	180105/180170GUD-lager
105	180		84	100				3900	11	180105/180180GUD-lager
105	180.975		84	100				3900	8.82	180105/180180XGUD-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
105	190		84	100				3900	10.5	180105/180190GUD-lager
108	165.1		67.96	87				3900	9.16	141107X/141165XGSUD-lager
111	180.975		82.6	108				3600	8.34	181111X/181180XGUD-lager
111	190		82.6	108				3600	9.95	181111X/181190GUD-lager
111	190.5		82.6	108				3600	10.05	181111X/181190XGUD-lager
111	200.025		82.6	108				3600	8.34	181111X/181200XGUD-lager
115	165		55	65				3900	3.36	105115/105165GUD-lager
115	180.975		82.6	108				3600	7.84	181115/181180XGUD-lager
115	190		82.6	108				3600	9.45	181115/181190GUD-lager
115	190.5		82.6	108				3600	9.55	181115/181190XGUD-lager
115	200.025		82.6	108				3600	8.34	181115/181200XGUD-lager
118	180.975		82.6	108				3600	7.42	181118/181180XGUD-lager
118	190		82.6	108				3600	9.03	181118/181190GUD-lager
118	190.5		82.6	108				3600	9.13	181118/181190XGUD-lager
118	200.025		82.6	108				3600	8.34	181118/181200XGUD-lager
120	165		55	65				3900	3.36	105120/105165GUD-lager
120	190		82.6	108				3500	8.46	184120/184190GUD-lager
120	190.5		82.6	108				3500	8.46	184120/184190XGUD-lager
120	199		82.6	108				3500	8.46	184120/184199GUD-lager
120	200		82.6	108				3500	8.46	184120/184200GUD-lager
127	196.85		85.74	101.6				3400	8.8	164127X/164196XGUD-lager
127	200.025		85.74	101.6				3400	8.8	164127X/164200XGUD-lager
127	215		92	110				3100	13.54	200127X/200215GUD-lager
127	215.9		92	110				3100	13.54	200127X/200215XGUD-lager
133	196.85		85.74	101.6				3400	8.8	164133X/164196XGUD-lager
133	200.025		85.74	101.6				3400	8.8	164133X/164200XGUD-lager
133	215		92	110				3100	13.54	200133X/200215GUD-lager
133	215.9		92	110				3100	12.49	200133X/200215XGUD-lager
137	215		92	110				3100	13.54	200136X/200215GUD-lager
137	215.9		92	110				3100	11.97	200136X/200215XGUD-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
140	215		92	110				3100	13.54	200139X/200215GUD-lager
140	215.9		92	110				3100	13.54	200139X/200215XGUD-lager
140	241.3		104	126				2900	19.86	240139X/240241XGUD-lager
140	200		78	92.3				3100	9.7	161140/161200GSUD-lager
140	200.025		78	92.3				3100	9.7	161140/161200XGSUD-lager
143	200		78	92.3				3100	9.7	161142X/161200GSUD-lager
143	200.025		78	92.3				3100	9.7	161142X/161200XGSUD-lager
145	241.3		104	126				2900	18.78	240145/240241XGUD-lager
145	256		92	110				2700	14.49	203145/203256GUD-lager
149	241.3		104	126				2900	18.78	240149X/240241XGUD-lager
150	210		76	92				3000	9.96	163150/163210GUD-lager
152	222.25		81.2	105				3000	10.73	183152X/183222XGUD-lager
152	254		116.9	155				2600	24.87	281152X/281254XGUD-lager
152	266.7		116.9	155				2600	24.87	281152X/281266XGUD-lager
156	254		116.9	155				2600	24.87	281155X/281254XGUD-lager
156	266.7		116.9	155				2600	24.87	281155X/281266XGUD-lager
156	235		92	110				2700	14.49	203156/203235GUD-lager
165	254		88.96	108				2600	14.9	186165X/186254XGUD-lager
170	254		88.96	108				2600	14.9	186170/186254XGUD-lager
178	227.013		63.48	75				2700	5.93	115177X/115227XGUD-lager
178	254		88.96	108				2600	14.9	186177X/186254XGUD-lager
178	288.925		122.25	154				2300	31.8	280177X/280288XGUD-lager
185	258		90	110				2500	11.94	187185/187258GUD-lager
190	266.7		94.14	113.18				2400	15	204190/204266XGUD-lager
191	266.7		94.14	113.18				2400	15	204190X/204266XGUD-lager
191	282.575		91.42	120				2300	19.3	242190X/242282XGUD-lager
191	290		96	114				2200	17	206190X/206290GUD-lager
203	310		121.07	156				2100	32	283203X/283310GUD-lager
203	317.5		121.07	156				2100	35.3	283203X/283317XGUD-lager
210	290		96	114				2200	17	206210/206290GUD-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
210	310		121.07	156				2100	31.2	283210/283310GUD-lager
210	317.5		121.07	156				2100	34.5	283210/283317XGUD-lager
216	355.6		124.72	166				1900	50	284215X/284355XGUD-lager
229	355.6		124.72	166				1900	50	284228X/284355XGUD-lager
230	327.025		90.24	122				1900	23	244230/244327XGUD-lager
230	330		90.24	122				1900	26.84	244230/244330GUD-lager
235	327.025		90.24	122				1900	20	244234X/244327XGUD-lager
235	330		90.24	122				1900	26.8	244234X/244330GUD-lager
235	355.6		124.72	166				1900	47.43	284234X/284355XGUD-lager
254	400.05		114.24	146				1700	53.98	382254X/382400XGUD-lager
275	406.4		140	176				1600	65.94	320275/320406XGUD-lager
280	406.4		140	176				1600	63.18	320280X/320406XGUD-lager
330	482.6		158.72	200				1400	104	380330X/380482XGUD-lager
338	419.1		79	94				1500	30.4	152338X/152419XGUD-lager
356	482.6		100.55	145				1400	57.3	282355X/282482XGUD-lager
381	508		147	187				1300	79.2	303381X/303508XGUD-lager
406	549.275		152.36	200				1200	96.8	323406XS/323549XGSUD-lager
432	533.4		100.78	123				1200	44.7	232431X/232533XGUD-lager
457	596.9		147	187				1100	94.3	300457X/300596XGUD-lager
506	636		147	187				1000	115	307506/307636GUD-lager
25	52		36.5	43				13300	0.48	74025/74052HUWF-lager
30	62		42.5	51				11600	0.66	70030/70062HUWF-lager
30	66.675		42.48	52				10400	0.8	80030/80066XHUWF-lager
30	68		42.48	52				10400	0.8	80030/80068HUWF-lager
32	72		46.5	57				9600	0.86	100031X/100072HUWF-lager
32	76.2		46.5	57				9600	0.86	100031X/100076XHUWF-lager
32	80		46.5	57				9600	0.86	100031X/100080HUWF-lager
33	66.675		42.48	52				10400	0.8	80033X/80066XHUWF-lager
33	68		42.48	52				10400	0.8	80033X/80068HUWF-lager
35	72		46.5	57				9600	0.86	100034X/100072HUWF-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
35	76.2		46.5	57				9600	0.86	100034X/100076XHUWF-lager
35	80		46.5	57				9600	0.86	100034X/100080HUWF-lager
35	66.675		42.48	52				10400	0.74	80035/80066XHUWF-lager
35	72		46.5	57				9600	0.855	100035/100072HUWF-lager
35	76.2		46.5	57				9600	0.86	100035/100076XHUWF-lager
35	80		46.5	57				9600	0.86	100035/100080HUWF-lager
36	72		36.5	42				9600	0.595	102036/102072HUWF-lager
38	76		45.5	57				8800	0.865	101038X/101076HUWF-lager
38	76.2		45.5	57				8800	0.865	101038X/101076XHUWF-lager
38	80		45.5	57				8800	0.865	101038X/101080HUWF-lager
40	76		45.5	57				8800	0.865	101040/101076HUWF-lager
40	76.2		45.5	57				8800	0.865	101040/101076XHUWF-lager
40	80		45.5	57				8800	1.07	101040/101080HUWF-lager
40	85		48.66	55				8200	1.13	112040/112085HUWF-lager
41	76		45.5	57				8800	0.865	101041X/101076HUWF-lager
41	76.2		45.5	57				8800	0.865	101041X/101076XHUWF-lager
41	80		45.5	57				8800	0.865	101041X/101080HUWF-lager
41	85		48.66	55				8200	1.11	112041X/112085HUWF-lager
44	85		48.66	55				8200	1.11	112044X/112085HUWF-lager
44	85		55.66	62				8200	1.19	119044X/119085HUWF-lager
44	88.9		55.66	62				8200	1.19	119044X/119088XHUWF-lager
44	90		51.3	64				7400	1.38	111044X/111090HUWF-lager
44	93.266		51.3	64				7400	1.38	111044X/111093XHUWF-lager
45	85		48.66	55				8200	1.11	112045/112085HUWF-lager
45	85		55.66	62				8200	1.19	119045/119085HUWF-lager
45	88.9		55.66	62				8200	1.19	119045/119088XHUWF-lager
50	90		51.3	64				7400	1.38	111050/111090HUWF-lager
50	93.266		51.3	64				7400	1.38	111050/111093XHUWF-lager
50	96.838		54	65				6900	2.005	110050/110096XHUWF-lager
50	98.425		54	65				6900	2.005	110050/110098XHUWF-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
50	100		54	65				6900	2.005	110050/110100HUWF-lager
51	90		51.3	64				7400	1.38	111050X/111090HUWF-lager
51	96.838		54	65				6900	2.005	110050X/110096XHUWF-lager
51	98.425		54	65				6900	2.005	110050X/110098XHUWF-lager
51	100		54	65				6900	2.005	110050X/110100HUWF-lager
54	96.838		54	65				6900	2.005	110053X/110096XHUWF-lager
54	98.425		54	65				6900	2.005	110053X/110098XHUWF-lager
54	100		54	65				6900	2.005	110053X/110100HUWF-lager
55	96.838		54	65				6900	2.005	110055/110096XHUWF-lager
55	98.425		54	65				6900	2.005	110055/110098XHUWF-lager
55	100		54	65				6900	1.825	110055/110100HUWF-lager
57	96.838		54	65				6900	2.005	110057X/110096XHUWF-lager
57	96.838		54	65				6900	2.005	110057X/110098XHUWF-lager
57	100		54	65				6900	2.005	110057X/110100HUWF-lager
57	100		46.88	58				6600	1.9	113057X/113100HUWF-lager
57	101.6		46.88	58				6600	1.9	113057X/113101XHUWF-lager
57	110		60.3	73				6200	2.47	120057X/120110HUWF-lager
57	112.712		60.3	73				6200	2.47	120057X/120112XHUWF-lager
60	100		46.88	58				6600	1.9	113060/113100HUWF-lager
60	101.6		46.88	58				6600	1.9	113060/113101XHUWF-lager
60	110		60.3	73				6200	2.47	120060/120110HUWF-lager
60	112.712		60.3	73				6200	2.47	120060/120112XHUWF-lager
60	120		59.88	71				5700	2.96	130060/130120HUWF-lager
60	127		59.88	71				5700	2.96	130060/130127HUWF-lager
60	100		46.88	58				6600	1.9	113060X/113100HUWF-lager
60	101.6		46.88	58				6600	1.9	113060X/113101XHUWF-lager
64	110		60.3	73				6200	2.29	120063X/120110HUWF-lager
64	120		59.88	71				5700	2.96	130063X/130120HUWF-lager
64	127		59.88	71				5700	2.96	130063X/130127HUWF-lager
65	120		59.88	71				5700	2.96	130065/130120HUWF-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
65	127		59.88	71				5700	2.96	130065/130127HUWF-lager
70	127		59.88	71				5700	2.96	130069X/130127HUWF-lager
70	112.712		60.3	73				5800	2.085	124069X/124112XHUWF-lager
70	120		59.88	71				5700	2.71	130069X/130120HUWF-lager
70	120		73.12	89				5700	2.79	135069X/135120HUWF-lager
70	112.712		60.3	73				5800	2.085	124070/124112XHUWF-lager
70	120		59.88	71				5700	2.7	130070/130120HUWF-lager
70	127		59.88	71				5700	2.96	130070/130127HUWF-lager
73	120		49.7	64				5500	2.35	123073X/123120HUWF-lager
73	120.65		49.7	64				5500	2.35	123073X/123120XHUWF-lager
73	121.444		49.7	64				5500	2.35	123073X/123121XHUWF-lager
73	123.825		49.7	64				5500	2.35	123073X/123123XHUWF-lager
75	120		49.7	64				5500	2.25	123075/123120HUWF-lager
75	120.65		49.7	64				5500	2.25	123075/123120XHUWF-lager
75	121.444		49.7	64				5500	2.25	123075/123121XHUWF-lager
75	123.825		49.7	64				5500	2.25	123075/123123XHUWF-lager
75	127		60.5	73				5300	3.3	133075/133127HUWF-lager
75	130		60.5	73				5300	3.3	133075/133130HUWF-lager
75	133.35		60.5	73				5300	3.3	133075/133133XHUWF-lager
75	136.525		60.5	73				5300	3.3	133075/133136XHUWF-lager
76	120		49.7	64				5500	2.25	123076X/123120HUWF-lager
76	120.65		49.7	64				5500	2.25	123076X/123120XHUWF-lager
76	123.825		49.7	64				5500	2.25	123076X/123123XHUWF-lager
76	127		60.5	73				5300	3.3	133076X/133127HUWF-lager
76	130		60.5	73				5300	3.3	133076X/133130HUWF-lager
76	133.35		60.5	73				5300	3.3	133076X/133133XHUWF-lager
76	136.525		60.5	73				5300	3.3	133076X/133136XHUWF-lager
78	120		49.7	64				5500	2.25	123077X/123120HUWF-lager
78	120.65		49.7	64				5500	2.25	123077X/123120XHUWF-lager
78	121.444		49.7	64				5500	2.25	123077X/123121XHUWF-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
78	123.825		49.7	64				5500	2.25	123077X/123123XHUWF-lager
80	140		69.14	85				4900	4.545	140080/140140HUWF-lager
81	133.35		58.12	74				4900	2.25	126080X/126133XHUWF-lager
83	133.35		58.12	74				4900	2.25	126082X/126133XHUWF-lager
83	136.525		58.12	74				4900	2.25	126082X/126136XHUWF-lager
83	140		69.14	85				4900	4.345	140082X/140140HUWF-lager
84	133.35		58.12	74				4900	2.4	126084X/126133XHUWF-lager
84	136.525		58.12	74				4900	2.4	126084X/126136XHUWF-lager
85	140		69.14	85				4900	4.145	140085/140140HUWF-lager
85	170		89	106				4200	8.545	210085/210170HUWF-lager
86	133.35		58.12	74				4900	2.4	126085X/126133XHUWF-lager
86	136.525		58.12	74				4900	2.4	126085X/126136XHUWF-lager
89	133.35		58.12	74				4900	2.4	126088X/126133XHUWF-lager
89	136.525		58.12	74				4900	2.4	126088X/126136XHUWF-lager
90	133.35		60.12	76				4800	4	117090/117133XHUWF-lager
90	150		62	75				4400	4.745	131090/131150HUWF-lager
90	152.4		62	75				4400	4.745	131090/131152XHUWF-lager
90	152.4		75.8	92				4300	5.15	160090/160152XHUWF-lager
90	158.75		62	75				4400	4.745	131090/131158XHUWF-lager
90	158.75		75.8	92				4300	5.15	160090/160158XHUWF-lager
90	160		75.8	92				4300	5.15	160090/160160HUWF-lager
90	161.925		75.8	92				4300	5.15	160090/160161XHUWF-lager
90	170		89	106				4200	8.545	210090/210170HUWF-lager
92	150		62	75				4400	4.745	131092X/131150HUWF-lager
92	152.4		62	75				4400	4.745	131092X/131152XHUWF-lager
92	158.75		62	75				4400	4.745	131092X/131158XHUWF-lager
94	150		62	75				4400	4.745	131093X/131150HUWF-lager
94	152.4		62	75				4400	4.745	131093X/131152XHUWF-lager
94	158.75		62	75				4400	4.745	131093X/131158XHUWF-lager
95	150		62	75				4400	4.745	131095/131150HUWF-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
95	152.4		62	75				4400	4.625	131095/131152XHUWF-lager
95	158.75		62	75				4400	4.745	131095/131158XHUWF-lager
95	170		89	106				4200	8.545	210095/210170HUWF-lager
97	150		62	75				4400	4.745	131097/131150HUWF-lager
97	152.4		62	75				4400	4.465	131097/131152XHUWF-lager
97	158.75		62	75				4400	4.745	131097/131158XHUWF-lager
98	152.4		75.8	92				4300	5.15	160098X/160152XHUWF-lager
98	158.75		75.8	92				4300	5.15	160098X/160158XHUWF-lager
98	160		75.8	92				4300	5.15	160098X/160160HUWF-lager
98	161.925		75.8	92				4300	5.15	160098X/160161XHUWF-lager
100	170		84	100				3900	9.52	180100/180170HUWF-lager
100	180		84	100				3900	9.42	180100/180180HUWF-lager
100	180.975		84	100				3900	9.52	180100/180180XHUWF-lager
100	190		84	100				3900	11.12	180100/180190HUWF-lager
102	165.1		67.96	87				3900	9.4	141101X/141165XHUWF-lager
102	170		84	100				3900	9.52	180101X/180170HUWF-lager
102	180		84	100				3900	9.52	180101X/180180HUWF-lager
102	180.975		84	100				3900	9.52	180101X/180180XHUWF-lager
102	190		84	100				3900	11.08	180101X/180190HUWF-lager
105	170		84	100				3900	9.52	180105/180170HUWF-lager
105	180		84	100				3900	9.52	180105/180180HUWF-lager
105	180.975		84	100				3900	9.06	180105/180180XHUWF-lager
105	190		84	100				3900	10.62	180105/180190HUWF-lager
108	165.1		67.96	87				3900	9.4	141107X/141165XHSUWF-lager
111	180.975		82.6	108				3600	8.6	181111X/181180XHUWF-lager
111	190		82.6	108				3600	10.1	181111X/181190HUWF-lager
111	190.5		82.6	108				3600	10.4	181111X/181190XHUWF-lager
111	200.025		82.6	108				3600	8.6	181111X/181200XHUWF-lager
115	165		55	65				3900	3.45	105115/105165HUWF-lager
115	180.975		82.6	108				3600	8.1	181115/181180XHUWF-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
115	190		82.6	108				3600	9.6	181115/181190HUWF-lager
115	190.5		82.6	108				3600	9.9	181115/181190XHUWF-lager
115	200.025		82.6	108				3600	8.6	181115/181200XHUWF-lager
118	180.975		82.6	108				3600	7.68	181118/181180XHUWF-lager
118	190		82.6	108				3600	9.18	181118/181190HUWF-lager
118	190.5		82.6	108				3600	9.48	181118/181190XHUWF-lager
118	200.025		82.6	108				3600	8.6	181118/181200XHUWF-lager
120	165		55	65				3900	3.45	105120/105165HUWF-lager
120	190		82.6	108				3500	8.8	184120/184190HUWF-lager
120	190.5		82.6	108				3500	8.8	184120/184190XHUWF-lager
120	199		82.6	108				3500	8.8	184120/184199HUWF-lager
120	200		82.6	108				3500	8.8	184120/184200HUWF-lager
127	196.85		85.74	101.6				3400	9.2	164127X/164196XHUWF-lager
127	200.025		85.74	101.6				3400	9.2	164127X/164200XHUWF-lager
127	215		92	110				3100	13.9	200127X/200215HUWF-lager
127	215.9		92	110				3100	13.9	200127X/200215XHUWF-lager
133	196.85		85.74	101.6				3400	9.2	164133X/164196XHUWF-lager
133	196.85		76.74	92.6				3400	8.5	164133X/164196XHSUWF-lager
133	200.025		85.74	101.6				3400	9.2	164133X/164200XHUWF-lager
133	215		92	110				3100	13.9	200133X/200215HUWF-lager
133	215.9		92	110				3100	12.85	200133X/200215XHUWF-lager
137	215		92	110				3100	13.9	200136X/200215HUWF-lager
137	215.9		92	110				3100	12.33	200136X/200215XHUWF-lager
140	215		92	110				3100	13.9	200139X/200215HUWF-lager
140	215.9		92	110				3100	13.9	200139X/200215XHUWF-lager
140	241.3		104	126				2900	20.485	240139X/240241XHUWF-lager
140	200		78	92.3				3100	10	161140/161200HSUWF-lager
140	200.025		78	92.3				3100	10	161140/161200XHSUWF-lager
143	200		78	92.3				3100	10	161142X/161200HSUWF-lager
143	200.025		78	92.3				3100	10	161142X/161200XHSUWF-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
145	241.3		104	126				2900	19.405	240145/240241XHUWF-lager
145	256		92	110				2700	14.87	203145/203256HUWF-lager
149	241.3		104	126				2900	20.485	240149X/240241XHUWF-lager
150	210		76	92				3000	10.2	163150/163210HUWF-lager
152	222.25		81.2	105				3000	11.15	183152X/183222XHUWF-lager
152	254		116.9	155				2600	25.6	281152X/281254XHUWF-lager
152	266.7		116.9	155				2600	25.6	281152X/281266XHUWF-lager
156	254		116.9	155				2600	25.6	281155X/281254XHUWF-lager
156	266.7		116.9	155				2600	25.6	281155X/281266XHUWF-lager
156	235		92	110				2700	14.87	203156/203235HUWF-lager
165	254		88.96	108				2600	15	186165X/186254XHUWF-lager
170	254		88.96	108				2600	15	186170/186254XHUWF-lager
178	227.013		63.48	75				2700	6.15	115177X/115227XHUWF-lager
178	254		88.96	108				2600	15	186177X/186254XHUWF-lager
178	288.925		122.25	154				2300	32.6	280177X/280288XHUWF-lager
185	258		90	110				2500	12.3	187185/187258HUWF-lager
190	266.7		94.14	113.18				2400	15.5	204190/204266XHUWF-lager
191	266.7		94.14	113.18				2400	15.5	204190X/204266XHUWF-lager
191	282.575		91.42	120				2300	20	242190X/242282XHUWF-lager
191	290		96	114				2200	17.3	206190X/206290HUWF-lager
203	310		121.08	156				2100	32.8	283203X/283310HUWF-lager
203	317.5		121.08	156				2100	36.3	283203X/283317XHUWF-lager
210	290		96	114				2200	17.3	206210/206290HUWF-lager
210	310		121.08	156				2100	32	283210/283310HUWF-lager
210	317.5		121.08	156				2100	35.5	283210/283317XHUWF-lager
216	355.6		124.72	166				1900	51	284215X/284355XHUWF-lager
229	355.6		124.72	166				1900	51	284228X/284355XHUWF-lager
230	327.025		90.24	122				1900	23.2	244230/244327XHUWF-lager
230	330		90.24	122				1900	27.35	244230/244330HUWF-lager
235	327.025		90.24	122				1900	21	244234X/244327XHUWF-lager

Basisafmetingen					Basis draagvermogen		Snelheidsbeoordelingen		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Basisafmetingen					dynamisch	statisch	Referentiesnelheid	Snelheid beperken	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Lager nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Lager nr.
235	330		90.24	122				1900	27	244234X/244330HUWF-lager
235	355.6		124.72	166				1900	48.43	284234X/284355XHUWF-lager
254	400.05		114.24	146				1700	55.5	382254X/382400XHUWF-lager
275	406.4		140	176				1600	67.6	320275/320406XHUWF-lager
280	406.4		140	176				1600	64.84	320280X/320406XHUWF-lager
330	482.6		157.73	200				1400	105	380330X/380482XHUWF-lager
338	419.1		79	94				1500	30.9	152338X/152419XHUWF-lager
356	482.6		100.55	145				1400	58.7	282355X/282482XHUWF-lager
381	508		147	187				1300	80	303381X/303508XHUWF-lager
406	549.275		152.36	200				1200	98.25	323406XS/323549XHSUWF-lager
432	533.4		100.78	123				1200	45	232431X/232533XHUWF-lager
457	596.9		147	187				1100	95	300457X/300596XHUWF-lager
506	636		147	187				1000	116	307506/307636HUWF-lager

Engineering van de toekomst van beweging

Over UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China BT2B 332504/HA2 - Kegellagers met dubbele rij suppliers and OEM/ODM BT2B 332504/HA2 - Kegellagers met dubbele rij company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Meer over ons Ukl Bearing Manufacturing Co.,Ltd

0+

jaar

Industrie ervaring
0+

Diversiteit van modellen
0+

Aantal werknemers
0

$

Jaarlijkse exportwaarde

Certificaat van eer

Nieuws

Waarom blinkt het NU 309 cilindrische rollager uit in motor- en versnellingsbakontwerpen?
04 Jun, 2026
Belangrijkste conclusie: het NU 309-lager blinkt uit als een zwevend lager Voor motor- en versnellingsbakontwerpen waarbij thermische uitzetting van de as een kritische zorg is, is de ...

LEES MEER
Een 2206 AV Nilos Ring installeren (stapsgewijze handleiding)
28 May, 2026
Installeer met de open zijde naar het lager gericht Om de 2206 AV Nilos Ring, plaats deze zo dat de bolle (open) zijde naar de lagerloopring wijst. De ring moet vlak teg...

LEES MEER
Precisie onder druk: sleutelfactoren die de keuze voor lagers voor medische apparatuur bepalen
14 May, 2026
In het snel evoluerende veld van de medische technologie kan zelfs het kleinste onderdeel het succes van een levensreddend apparaat bepalen. Onder deze, lagers voor medische apparatuur ...

LEES MEER
Hoe verbeteren lagers voor 5-assige bewerkingscentra de precisie, snelheid en stabiliteit in CNC-systemen?
08 May, 2026
Inleiding: De rol van lagers in 5-assige bewerkingscentra De moderne productiesector is een tijdperk binnengegaan waarin precisie niet langer een voordeel is, maar een basisvereiste. Van alle CN...

LEES MEER
